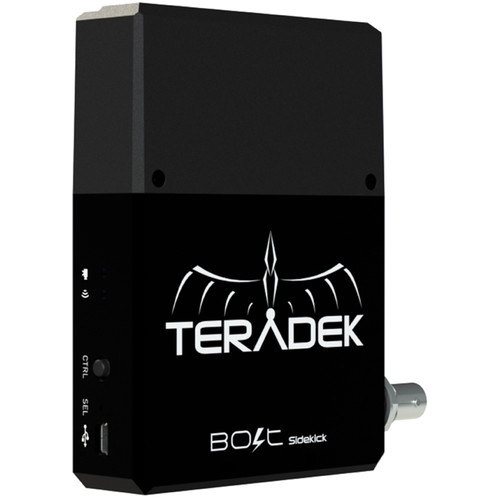

Teradek Bolt Sidekick 3G-SDI Video Receiver for Bolt Pro 600 and 2000 Systems

Teradek Bolt Sidekick 3G-SDI Video Receiver for Bolt Pro 600 and 2000 Systems

Category: Teradek

Description

Description

Resolution	1080p: 60/59.94/50/30/29.97/25/24/23.98 1080psF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 480i (NTSC) / 576i (PAL)
Color Sampling	Y:Cb:Cr = 4:2:2, 10-bit color
Output	1 x 75 Ohm BNC
Delay	Transmitter to Receiver: <0.001 sec (without video format conversion)

Audio
Format Support	48 kHz 24-bit PCM

Wireless
Frequency	Non-DFS Frequencies: US: 5.19 to 5.23 GHz & 5.755 to 5.795 GHz DFS Frequencies: US: 5.27 to 5.55 GHz & 5.67 GHz
RF Power	17 dBm EIRP
Range	Up to 300′ (91.4 m) line-of-sight
Broadcast, Unicast, Multicast DoS Protection	Yes
Mode Noise Rejection	Can coexist with Wi-Fi and 5 GHz phones

Power
Input	2-pin Lemo 7 – 17 VDC
Consumption	1080p60: 7 W

General Specifications
Menu Navigation	Joystick
Mounting	Hot-shoe mount Multiple mounting options via 1/4″-20 threads
Chassis Material	Cap: Plastic Body: Milled aluminum
Operating Temperature	32 – 122°F (0 – 50°C)
Firmware	Upgrade via Mini-USB
Dimensions	4.5 x 3.3 x 1.0″ (11 x 84 x 25 cm)
Weight	10.2 oz (288 g)

‹ › ×
