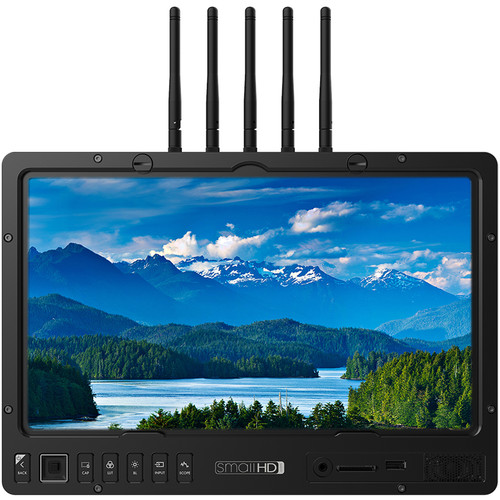

Small HD 13″ Bolt Monitor

For a quote on renting this product, please call us at 615-782-2002 or email [email protected]

Description

Display

Panel Type IPS-Type LCD
Display Size 13.3″ / 33.8 cm
Active Area 11.59 x 6.52″ / 29.44 x 16.56 cm
Screen Resolution 1920 x 1080
Aspect Ratio 16:9
Viewing Angle Horizontal: 177°
Vertical: 177°
Maximum Brightness 1500 cd/m2
Contrast Ratio 1150:1
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
Pixels Per Inch (ppi) 166 ppi
Color Gamut 93% NTSC



I/O

Video 2 x BNC (3G-SDI) Input
2 x BNC (3G-SDI) Output
1 x HDMI Type A Output
Embedded Audio SDI: 8-Channel
HDMI: 8-Channel
Audio 1 x 3.5 mm Headphone Output
Built-In Speaker 1
Power 1 x 4-Pin XLR Input
1 x 2-Pin LEMO  (4 A) Output
Card Slot None

Format Support

Video Format SDI (10-BitYCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576i: 50
480i: 59.94
Video Signal Conversion SDI to HDMI
1080p: 23.98/24/29.97/30/50/59.94/60
1080i: 50/59.94/60
720p: 50/59.94/60
480i: 59.94/60
576i: 50

Power

AC Input Power 100 to 240 VAC, 50 / 60 Hz
DC Input Power 12 to 34 VDC
Battery Type None
Power Consumption 13.5 W (Idle)
95 W (Maximum)
