LPS-1 Fiber Base Station
For a quote on renting this product, please call us at 615-782-2002 or email [email protected]
The fiber base station integrates seamlessly into live production environments, supporting multiple simultaneous outputs.

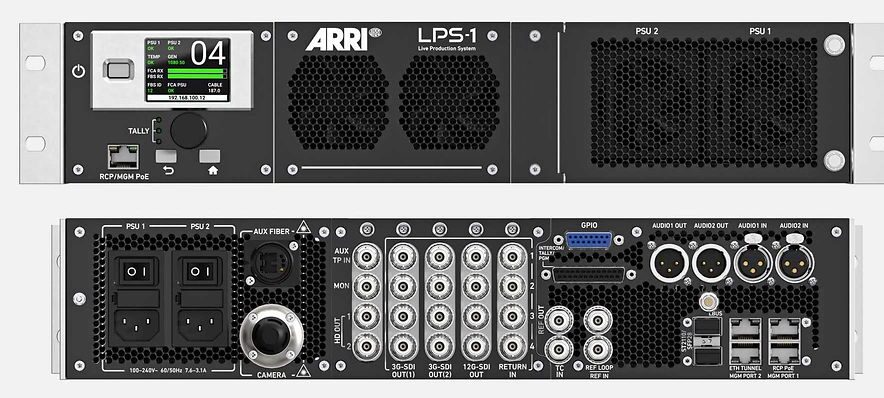

LPS-1 Fiber Base Station Interfaces
Connectors & Controls (front)
RCP/MGM PoE RJ45 for RCP connection (PoE) or web interface
TALLY Red, green and yellow tally indicator
Connectors (back)
PSU 1 IEC 320 Universal AC mains power input (100 – 240V, 50/60Hz)
PSU 2 IEC 320 Universal AC mains power input (100 – 240V, 50/60Hz)
AUX FIBER Neutrik Opticon connector for auxiliary fiber tunnel
CAMERA Lemo 3K SMPTE 311M fiber connector (plug)
AUX TP IN BNC input auxiliary/teleprompter (SDI up to 12G)
MON BNC output with status overlay (SDI up to 3G)
HD OUT 1/2 2x BNC outputs for down converted HD signal (SDI up to 3G), progressive or interlaced
3G-SDI OUT (1) 1-4 4x BNC outputs for 4x single link 3G or 1x quad link 12G
3G-SDI OUT (2) 1-4 4x BNC outputs for 4x single link 3G or 1x quad link 12G
12G-SDI 4x BNC outputs for up to 4x single link 12G or 2x dual link 6G
RETURN IN 1-4 4x BNC inputs for return video (up to 3G)
GPIO D-sub 15-pin for general purpose I/O
INTERCOM/TALLY/PGM D-sub 25-pin for Intercom audio in/out, PGM audio in and Tally control (SONY style connector and pin-assignments)
REF OUT 1x BNC output for active genlock (black burst or tri-level sync) derived from PTP or analog REF IN
TC IN 1x BNC input for linear timecode
REF LOOP 1x BNC loop output of genlock input signal (black burst or tri-level sync)
REF IN 1x BNC input for genlock signal (black burst or tri-level sync)
AUDIO1 OUT XLR 3-pin plug (line level or AES) for balanced analog or digital audio
AUDIO2 OUT XLR 3-pin plug (line level or AES) for balanced analog or digital audio
AUDIO1 IN XLR 3-pin socket (line level or AES) for balanced analog or digital audio
AUDIO2 IN XLR 3-pin socket (line level or AES) for balanced analog or digital audio
LBUS ARRI LBUS connector for future use
ST2110/SFP28 SFP28 transceiver modules with LC fiber connector (up to 25G) for SMPTE 2110, primary or redundant
ST2110/SFP28 SFP28 transceiver modules with LC fiber connector (up to 25G) for SMPTE 2110, primary or redundant
ETH TUNNEL RJ45 for auxiliary 1 Gbit/s Ethernet tunnel
MGM PORT 2 RJ45 for multicam web interface
RCP PoE RJ45 for remote control panels (with power)
MGM PORT 1 RJ45 for multicam web interface
